Name：pipe expansion joints

Type：TSX-10/16

Nominal Dimension：DN50-DN12000

Design Standard：

Nominal Pressure：PN10/16

Face to face dimension：

Suitalbe Medium：water、oil、gas etc

Connection dimension of flange：

Suitable：-10°C-80°C

Nominal Pressure:GB/T13927

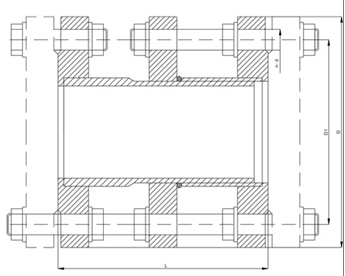

Outline Dimensions and Connection Dimensions

DN(mm)

D

D1

n-d0

L

Stroke

50

165

125

4-18

175

30

65

185

145

4-18

181

40

80

200

160

8-18

182

40

100

220

180

8-18

195

40

125

250

210

8-18

201

45

150

285

240

8-22

210

45

200

340

295

8-22/12-22

217

45

250

395/405

350/355

12-22/12-26

224

45

300

445/460

400/410

12-22/12-26

227

45

350

505/520

460/470

16-22/16-26

233

50

400

565/580

515/525

16-26/16-30

248

50

450

615/640

565/585

20-26/20-30

263

50

500

670/715

620/650

20-26/20-33

297

50

600

780/840

725/770

20-30/20-36

302

50

700

895/910

840

24-30/24-36

317

50

800

1015/1025

950

24-33/24-39

322

60

900

1115/1125

1050

28-33/28-39

324

60

1000

1230/1255

1160/1170

28-36/28-42

344

60

1200

1455/1485

1380/1390

32-39/32-48

395

60

1400

1675/1685

1590

36-42/36-48

405

60

1600

1915/1930

1820

40-48/40-55

384

60

1800

2115/2130

2020

44-48/44-55

380

60

2000

2325/2345

2230

48-48/48-60

380

60
