Name：Y Type Strainer | Type：GL41-10/16 |
DN：DN40-DN600 | Design Standard： |
Nominal pressure：PN10/16 | Face to face dimension： |
Mediums：water、oil、gas etc. | Connection dimension of flange：GB/T9113.1-2000 |
Suitable temperature：-10°C-150°C | Nominal pressure:GB/T13927-1992 |

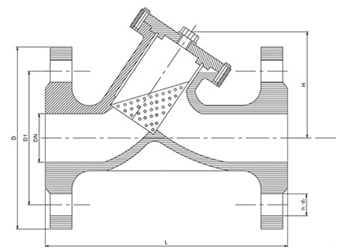

Outline Dimensions and Connections and Weight | ||||||||
DN(mm) | L | H | D | D1 | D2 | |||
PN10 | PN16 | PN10 | PN16 | PN10 | PN16 | |||
40 | 200 | 114 | 150 | 150 | 110 | 110 | 4-18 | 4-18 |
50 | 230 | 124 | 165 | 165 | 125 | 125 | 4-18 | 4-18 |
65 | 290 | 139 | 185 | 185 | 145 | 145 | 4-18 | 4-18 |
80 | 310 | 187 | 200 | 200 | 160 | 160 | 4-18 | 8-18 |
100 | 350 | 199 | 220 | 220 | 180 | 180 | 8-18 | 8-18 |
125 | 400 | 240 | 250 | 250 | 210 | 210 | 8-18 | 8-18 |
150 | 480 | 264 | 285 | 285 | 240 | 240 | 8-22 | 8-22 |
200 | 600 | 311 | 340 | 340 | 295 | 295 | 8-22 | 12-22 |
250 | 622 | 385 | 395 | 405 | 350 | 355 | 12-22 | 12-26 |
300 | 698 | 452 | 445 | 460 | 400 | 410 | 12-22 | 12-26 |
350 | 787 | 520 | 505 | 520 | 460 | 470 | 16-22 | 16-26 |
400 | 914 | 630 | 565 | 580 | 515 | 525 | 16-26 | 16-30 |
450 | 978 | 720 | 615 | 640 | 565 | 585 | 20-26 | 20-30 |
500 | 978 | 850 | 670 | 715 | 620 | 650 | 20-26 | 20-33 |
600 | 1295 | 980 | 780 | 840 | 725 | 770 | 20-30 |
|
